Section 2 · Capabilities
Five Things It Already Does. Activated by Software.
Not vaporware. These are real capabilities, available on the same hardware.
01
Edge Analytics
Data aggregation and local analytics — processing happens at the plant.
02
Dual-Processor Watchdog
24/7 reliability. Secondary processor watches the primary. Auto-recovery on fault.
activatable
03
Battery Management
Full BMS capability for hybrid plants with storage. Software-activated.
activatable
04
Blockchain Communication
Tamper-proof data streams for PPA and grid settlement. Software-activated.
05
WiFi Hotspot
Built-in hotspot for on-site configuration without additional tooling.
Section 3 · Gateway Plus
When Your Plant Needs More.
Upgrade path — not a different product. Larger capacity and additional I/O for utility-scale plants and complex integrations.
Section 4 · Full Specifications

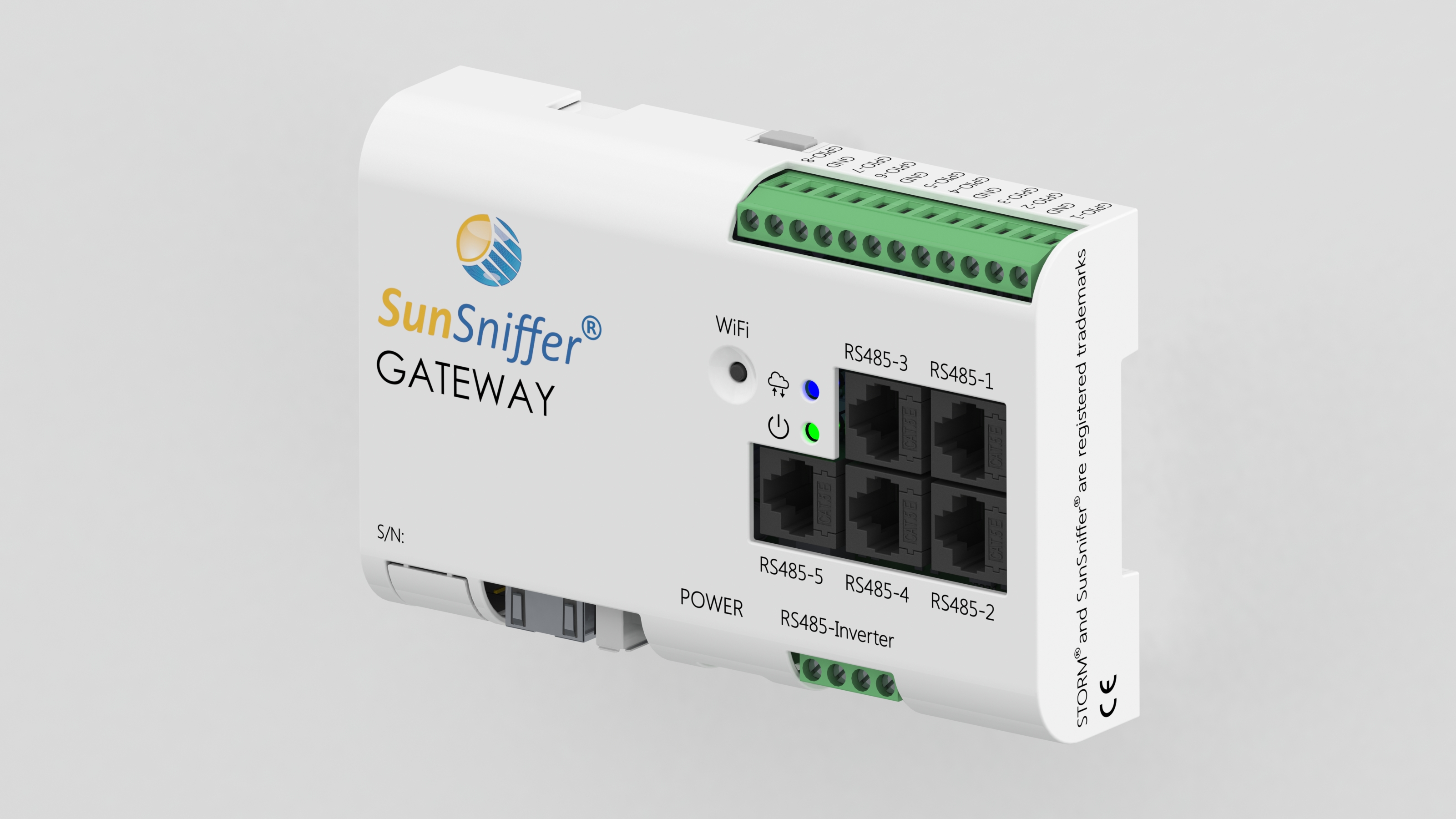

Gateway · Full Specifications.
STANDARD
Operating system
Linux — remote-updatable
Processors
Dual (primary + watchdog)
String Readers
up to 30
Channels (RS485)
3
Inputs
Ethernet, USB, WiFi hotspot
BMS
Activatable
Blockchain
Activatable
Enclosure
DIN-rail, IP20
PLUS
Operating system
Linux — remote-updatable
Processors
Dual (primary + watchdog)
String Readers
up to 150
Channels (RS485)
5
Analog inputs
4 × analog
Digital inputs
4 × digital (ripple control)
BMS · Blockchain
Activatable
Enclosure
DIN-rail, IP20
The Right Gateway for Your Plant Size.
Standard for commercial and industrial. Plus for utility-scale. Both running Linux, both ready for whatever comes next.
